# SCIENCE

SCI-001	FIRST QUARTER

# L1: LOCATING THE EPICENTER

A	DEFINITION

EARTHQUAKE

* happens when stored energy is suddenly released

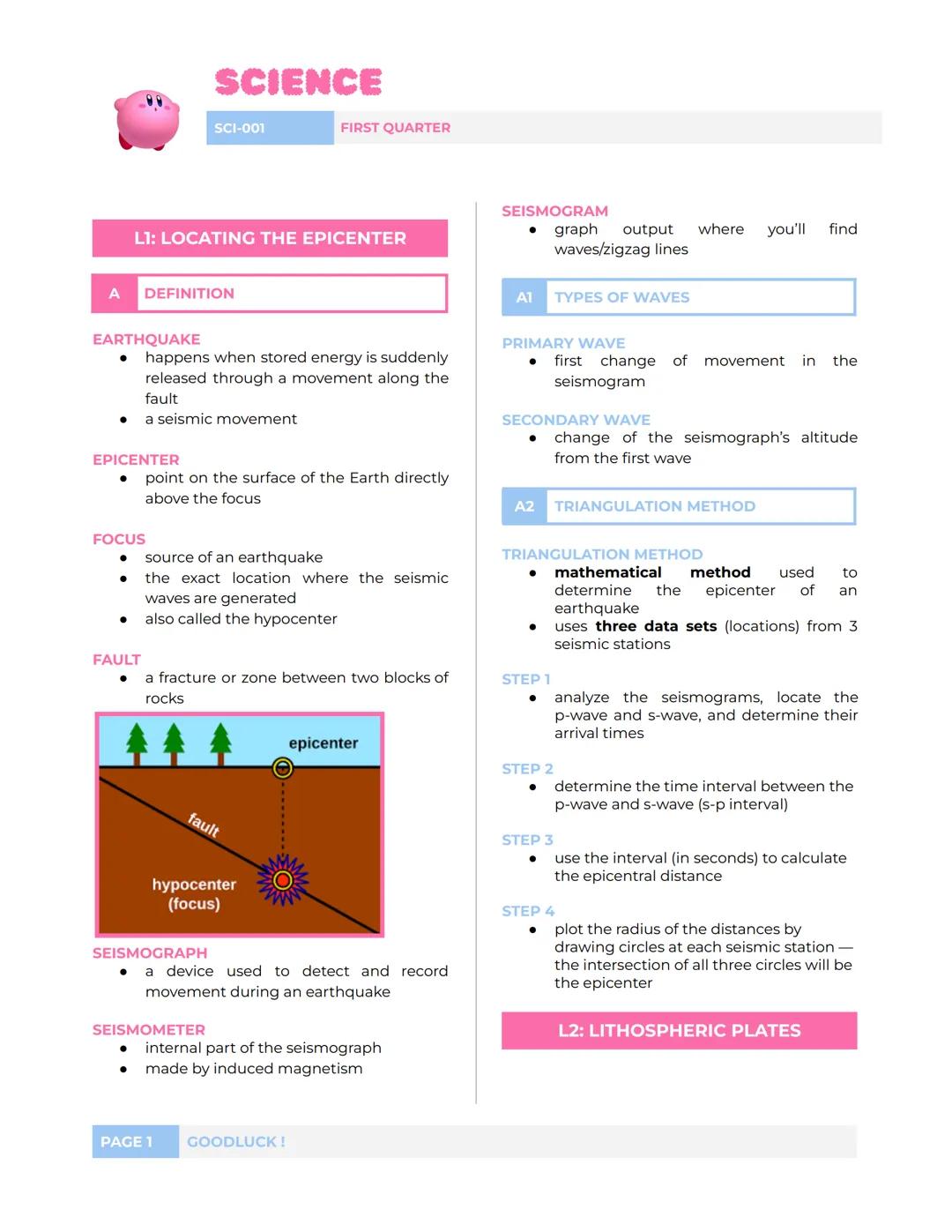

Locating Earthquake Epicenters

Think of earthquakes as Earth's way of releasing built-up stress, kind of like when you crack your knuckles! An earthquake happens when stored energy suddenly releases through movement along a fault (basically a crack between rock blocks).

Here's what you need to know: the focus (or hypocenter) is where the earthquake actually starts underground, while the epicenter is the point directly above it on Earth's surface. Scientists use a seismograph to detect and record these movements, creating zigzag patterns called seismograms.

Primary waves PwavesP-waves arrive first, followed by secondary waves SwavesS-waves. The triangulation method is like detective work - scientists use data from three different seismic stations, measure the time difference between P and S waves, then draw circles to find where they intersect. That intersection point? That's your epicenter!

Quick Tip: Remember that P-waves are "primary" because they're first, and S-waves are "secondary" because they arrive second!

# SCIENCE

SCI-001	FIRST QUARTER

# L1: LOCATING THE EPICENTER

A	DEFINITION

EARTHQUAKE

* happens when stored energy is suddenly released

Understanding Earth's Structure and Lithospheric Plates

Your planet is basically a layered cake! The crust is the cool, rocky outer layer we live on, the mantle is the hot middle layer made of molten rock, and the core is the super-hot center. The lithosphere combines the crust and upper mantle, while the asthenosphere sits below and helps plates move.

There are two types of crust: continental crust (thicker but lighter, like the land you walk on) and oceanic crust (thinner but denser, under the oceans). The plate tectonic theory explains that Earth's crust is broken into huge moving pieces called plates.

Here's the cool part - earthquakes, volcanoes, and mountains aren't randomly scattered around Earth! They cluster along plate boundaries where these massive pieces meet. Most volcanoes and earthquakes happen around the Pacific Ring of Fire, and here in the Philippines, we need to watch the West Valley Fault where the predicted "Big One" earthquake might hit.

Remember: Mountains form when plates crash into each other, while volcanoes often form through subduction when denser oceanic plates dive under lighter continental plates.

# SCIENCE

SCI-001	FIRST QUARTER

# L1: LOCATING THE EPICENTER

A	DEFINITION

EARTHQUAKE

* happens when stored energy is suddenly released

Types of Plate Boundaries: Convergent Boundaries

When plates crash into each other, you get convergent boundaries - think of them as Earth's collision zones! These create some of our planet's most dramatic features through compression and subduction (when one plate slides under another).

Oceanic-to-continental convergence happens when a dense oceanic plate dives under a lighter continental plate, creating volcanic arcs and deep trenches. Examples include the Andes Mountains where the Nazca Plate meets the South American Plate. The diving oceanic plate melts as it goes deeper, creating magma that rises to form volcanoes.

Oceanic-to-oceanic convergence occurs when two oceanic plates meet, and the older, denser one subducts. This creates volcanic island arcs (like many parts of the Philippines!) and can trigger tsunamis if the seafloor suddenly moves upward. Continental-to-continental convergence is like a head-on collision - neither plate subducts, so they buckle upward forming massive mountain ranges like the Himalayas.

Philippine Connection: Many parts of our archipelago formed from oceanic-oceanic convergence, which explains why we have so many volcanoes and experience frequent earthquakes!

# SCIENCE

SCI-001	FIRST QUARTER

# L1: LOCATING THE EPICENTER

A	DEFINITION

EARTHQUAKE

* happens when stored energy is suddenly released

Divergent and Transform Plate Boundaries

Divergent boundaries are where plates move apart - think of them as Earth's "stretching zones." As plates separate, new crust forms from rising magma, creating features like mid-ocean ridges and rift valleys. It's like Earth is constantly making new seafloor!

Continental rifting happens when continents start splitting apart, forming rift valleys like the East African Rift. Eventually, continued spreading can create new oceans! Mid-ocean ridges are actually Earth's longest mountain chains, stretching about 65,000 km mostly underwater.

Transform boundaries are where plates slide sideways past each other, like cars changing lanes. The famous San Andreas Fault in California is a perfect example of a strike-slip fault. These boundaries don't create or destroy crust - they're "conservative" - but they can generate powerful earthquakes when plates get stuck and then suddenly slip.

Real Talk: At divergent boundaries, new crust is born. At convergent boundaries, old crust gets recycled. At transform boundaries, plates just slide past each other like they're minding their own business!

# SCIENCE

SCI-001	FIRST QUARTER

# L1: LOCATING THE EPICENTER

A	DEFINITION

EARTHQUAKE

* happens when stored energy is suddenly released

Earth's Interior Structure

Scientists use seismic waves from earthquakes like X-rays to see inside Earth! Body waves travel through Earth's interior while surface waves only travel on top. When these waves hit different materials, they reflect, refract, or get absorbed - telling us what's inside our planet.

The crust is our thin, rocky outer shell made mostly of oxygen and silicon. Continental crust (like granite) is thicker but less dense than oceanic crust (like basalt). Below that, the mantle is a semi-solid, jello-like layer that's mostly silicon, oxygen, iron, and magnesium.

Earth's core has two parts: the liquid outer core of iron and nickel that creates our magnetic field, and the solid inner core that stays solid despite extreme heat because of crushing pressure. The movement of the outer core around the inner core generates Earth's magnetic field - basically turning our planet into a giant electromagnet!

Cool Fact: The Mohorovičič discontinuity (or "Moho") is the boundary between crust and mantle, discovered when scientists noticed seismic waves suddenly speed up at about 50 km depth!

# SCIENCE

SCI-001	FIRST QUARTER

# L1: LOCATING THE EPICENTER

A	DEFINITION

EARTHQUAKE

* happens when stored energy is suddenly released

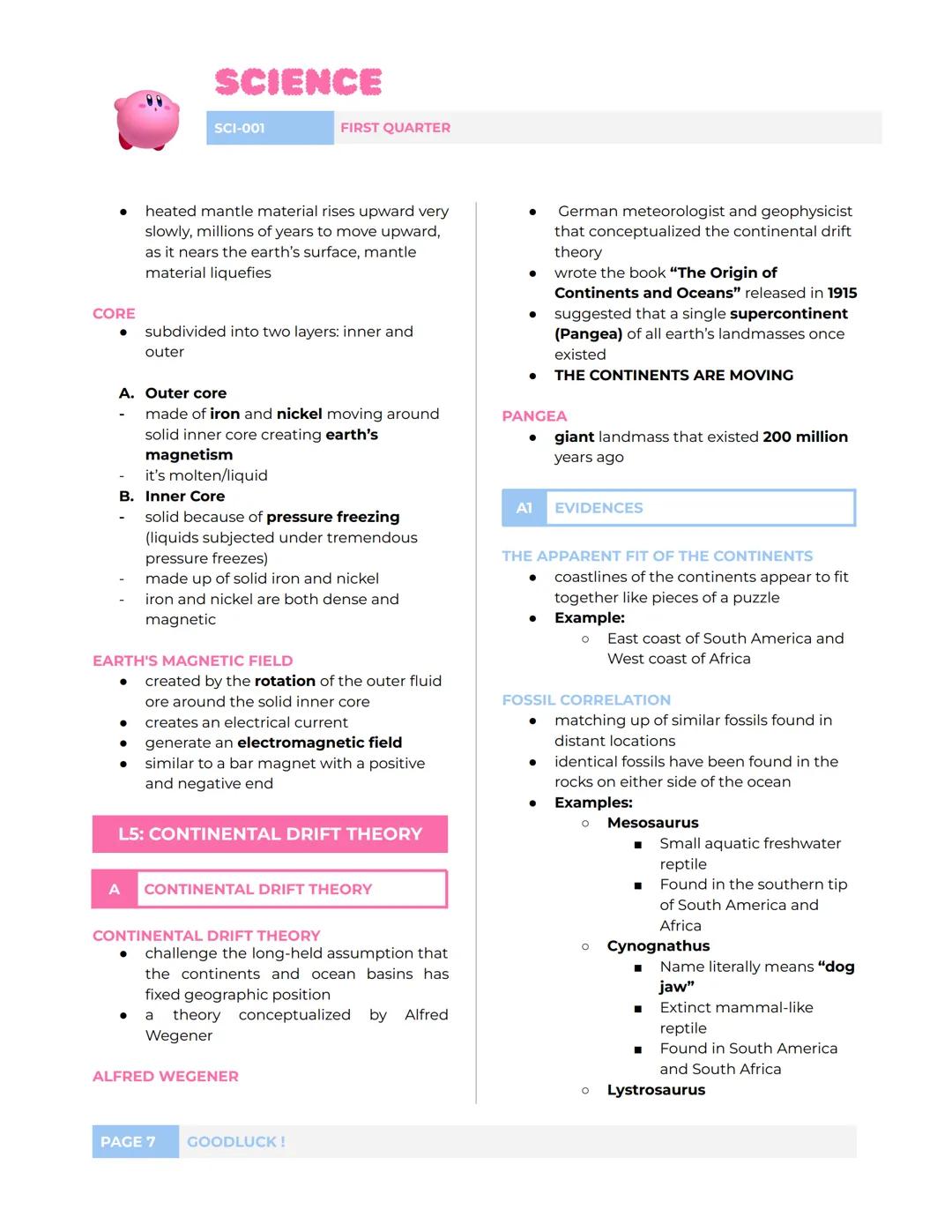

Continental Drift Theory

Back in 1915, German scientist Alfred Wegener proposed a wild idea: all continents were once joined together in a supercontinent called Pangea about 200 million years ago. People thought he was crazy, but he had some pretty convincing evidence!

Fossil correlation was Wegener's strongest proof. Identical fossils like Mesosaurus (a small freshwater reptile), Cynognathus the"dogjaw"mammallikereptilethe "dog jaw" mammal-like reptile, Lystrosaurus (the "shovel lizard"), and Glossopteris aplantwithtongueshapedleavesa plant with tongue-shaped leaves were found on continents separated by vast oceans. How could the same species exist on different continents unless they were once connected?

He also showed how continents fit together like puzzle pieces, especially South America and Africa. Rock correlation revealed matching mountain ranges and rock types across oceans, while paleoclimate data showed evidence of ancient ice sheets in now-warm places and tropical plant remains (coal) in now-cold regions.

Why was Wegener rejected? His evidence was solid, but he couldn't explain what force was powerful enough to move entire continents. That mystery wasn't solved until the 1960s!

# SCIENCE

SCI-001	FIRST QUARTER

# L1: LOCATING THE EPICENTER

A	DEFINITION

EARTHQUAKE

* happens when stored energy is suddenly released

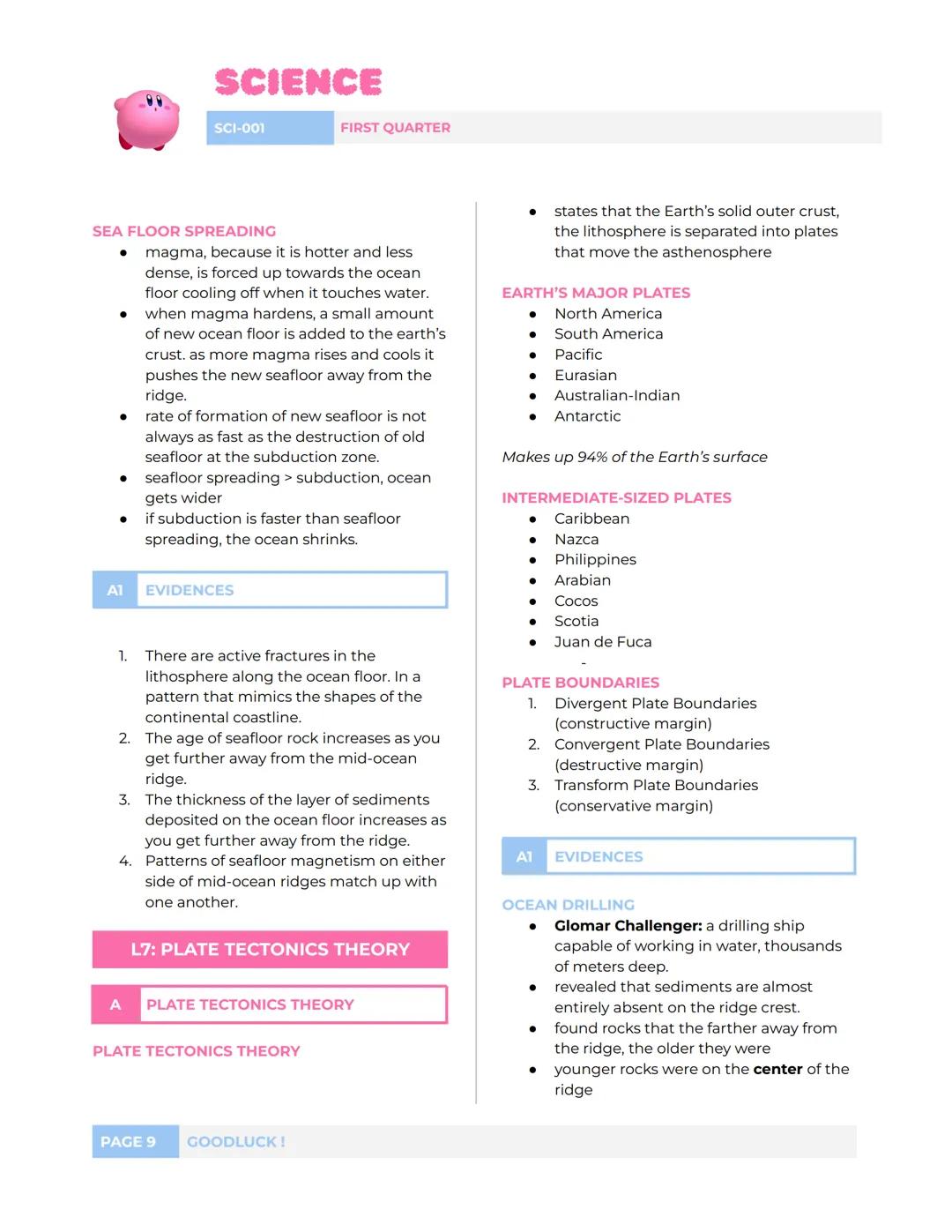

Seafloor Spreading Theory

In 1962, Harry Hess and Robert Dietz solved Wegener's puzzle with the seafloor spreading theory. They discovered that new ocean floor constantly forms at mid-ocean ridges - Earth's longest mountain chains hidden underwater.

Here's how it works: convection currents in the mantle act like a giant conveyor belt. Hot magma rises at mid-ocean ridges, cools when it hits seawater, and hardens into new seafloor. As more magma rises, it pushes the older seafloor away from the ridge, spreading the ocean floor outward.

SONAR technology helped map these underwater mountain ranges and revealed amazing evidence: seafloor rocks get older the farther you move from the ridges, sediment layers get thicker away from ridges, and magnetic patterns on both sides of ridges mirror each other perfectly. The rate of spreading varies - sometimes new seafloor forms faster than old seafloor gets destroyed at subduction zones, making oceans wider!

Mind-Blowing Fact: The Atlantic Ocean is still growing wider by about 2-5 centimeters per year - roughly the same rate your fingernails grow!

# SCIENCE

SCI-001	FIRST QUARTER

# L1: LOCATING THE EPICENTER

A	DEFINITION

EARTHQUAKE

* happens when stored energy is suddenly released

Plate Tectonics Theory: Putting It All Together

The plate tectonics theory combines continental drift and seafloor spreading into one unified explanation. Earth's lithosphere is broken into major plates that float on the asthenosphere like puzzle pieces on a slow-moving conveyor belt.

Seven major plates make up 94% of Earth's surface: North American, South American, Pacific, Eurasian, Australian-Indian, Antarctic, and African plates. Several intermediate-sized plates like the Philippine, Caribbean, and Nazca plates fill in the gaps.

Multiple lines of evidence support this theory: ocean drilling by the Glomar Challenger showed that seafloor rocks get progressively older away from ridges, paleomagnetism revealed magnetic stripe patterns, and the distribution of volcanoes and earthquakes perfectly matches plate boundaries. Paleontological evidence from fossils and glaciation evidence from ancient ice sheets all confirm that continents have indeed moved over geological time.

The Big Picture: Plate tectonics explains almost everything - why we have earthquakes, volcanoes, mountains, and even why similar fossils appear on different continents. It's the unifying theory that ties Earth science together!
