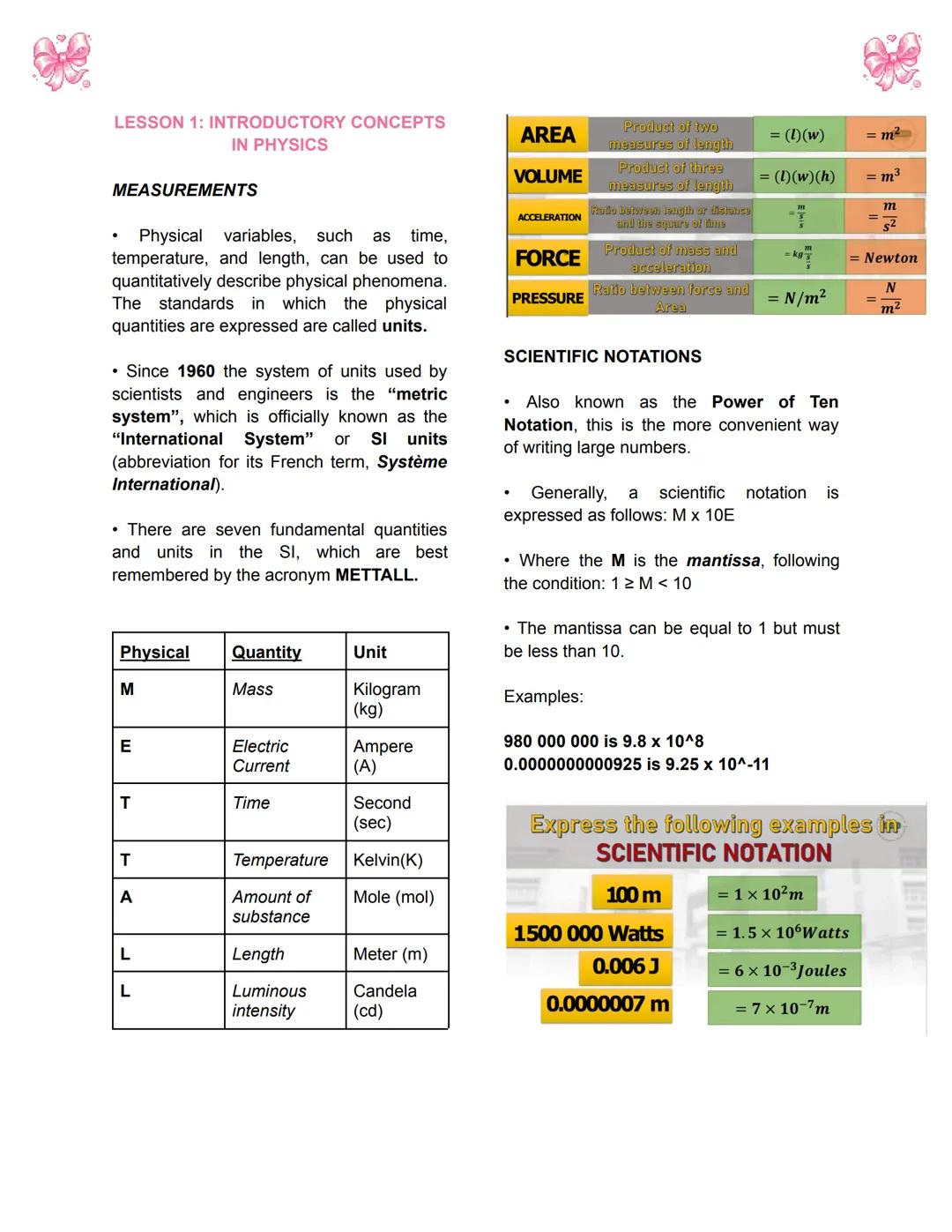

Introductory Concepts in Physics: Measurements

Ever wondered why scientists worldwide can communicate their findings perfectly? It's all thanks to the International System (SI units) - the universal language of measurement that replaced local systems in 1960.

The seven fundamental SI units are easily remembered with METTALL: Mass (kg), Electric current (A), Time (s), Temperature (K), Amount of substance (mol), Length (m), and Luminous intensity (cd). From these basics, we create derived units like area (m²), volume (m³), acceleration $m/s²$, force (Newton), and pressure $N/m²$.

Scientific notation makes handling huge and tiny numbers much simpler. The format is M × 10^E, where M (the mantissa) must be between 1 and 10. For example, 980,000,000 becomes 9.8 × 10⁸, while 0.0000000000925 becomes 9.25 × 10⁻¹¹.

Quick Tip: When converting to scientific notation, count how many places you move the decimal point - that's your exponent!

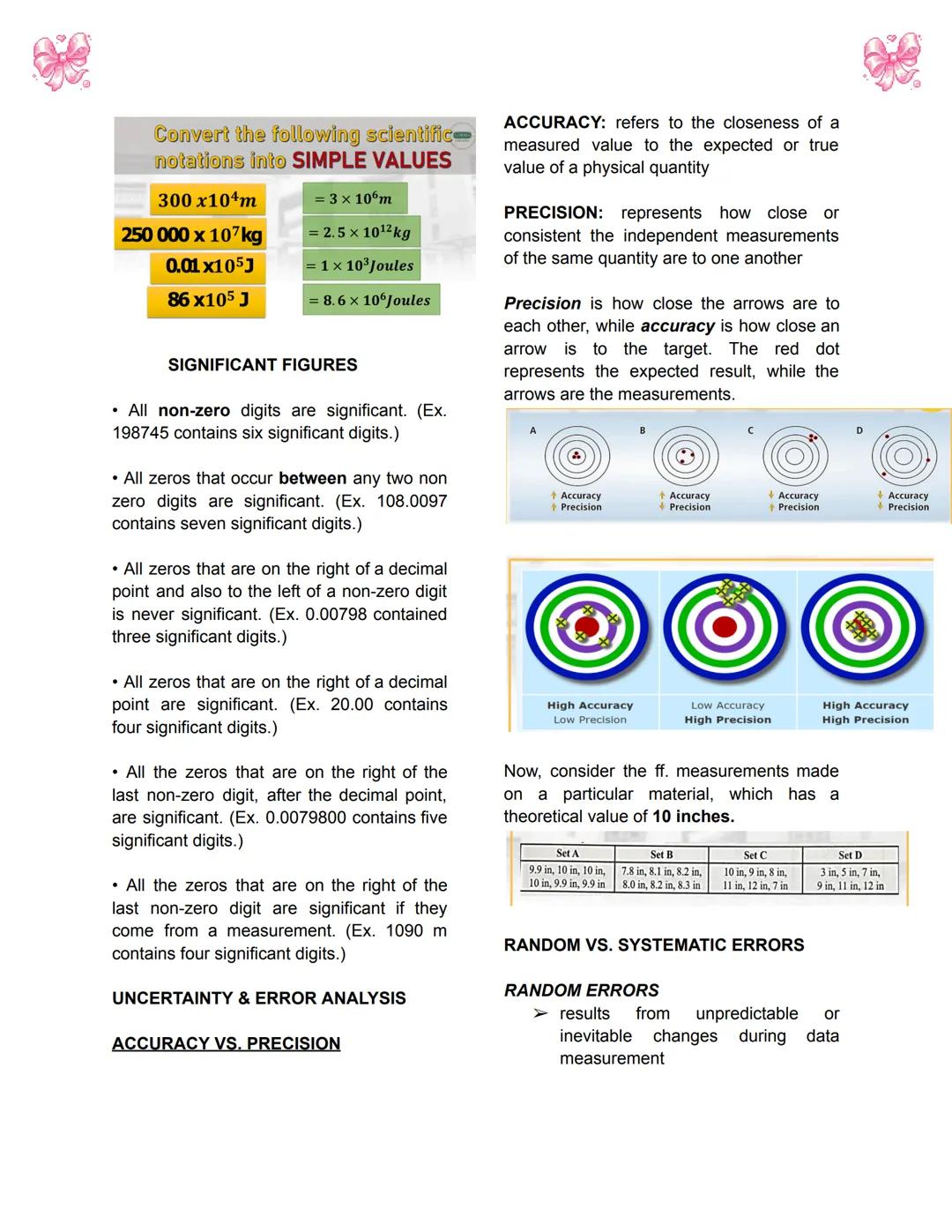

Scientific Notation and Significant Figures

Converting between scientific notation and regular numbers is straightforward once you master the pattern. Remember: 300 × 10⁴ = 3 × 10⁶ (combine the powers of 10), and 0.01 × 10⁵ = 1 × 10³.

Significant figures tell us how precise our measurements really are. Here's what counts: all non-zero digits are significant, zeros between non-zero digits count, leading zeros (like in 0.00798) don't count, but trailing zeros after a decimal point do count.

Accuracy vs. Precision - think of throwing darts at a target. Accuracy means hitting close to the bullseye (true value), while precision means your throws are clustered together. You can be precise but inaccurate, accurate but not precise, or ideally both!

Random errors come from unpredictable changes during measurement, while systematic errors stem from faulty instruments or experimental design. Understanding the difference helps you identify what went wrong in your lab work.

Memory Hook: Precision = Predictable clustering, Accuracy = Actually correct!

Error Analysis and Calculations

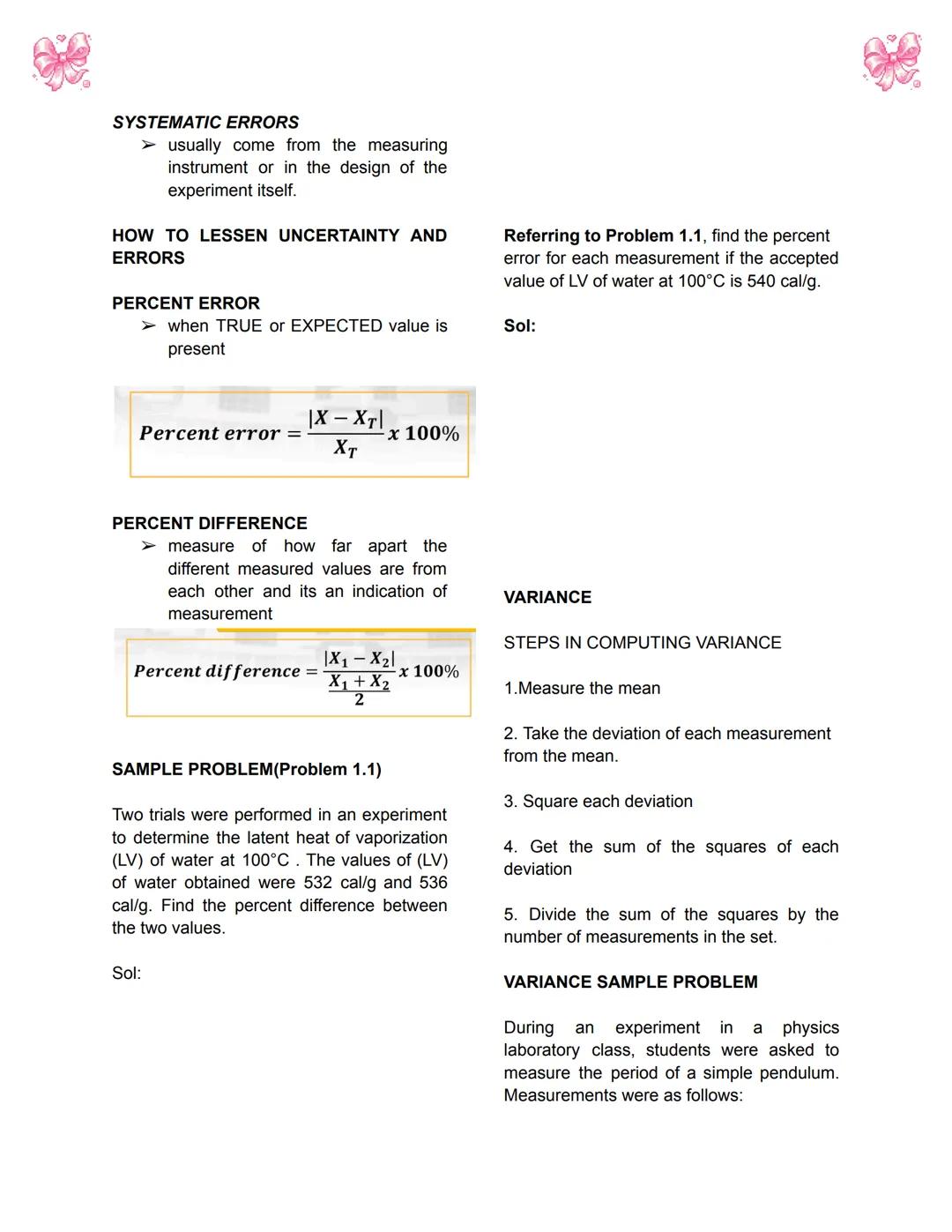

When you know the true value, use percent error: |X - X_T|/X_T × 100%. When comparing two measurements without a known true value, use percent difference: |X₁ - X₂|/$(X₁ + X₂)/2$ × 100%.

Let's work through an example: Two trials measuring water's latent heat gave 532 cal/g and 536 cal/g. The percent difference = |532 - 536|/((532 + 536)/2) × 100% = 4/534 × 100% = 0.75%.

Variance measures how spread out your data is from the average. Calculate the mean first, find each measurement's deviation from the mean, square those deviations, add them up, then divide by the number of measurements.

The process might seem tedious, but variance helps you understand the reliability of your experimental results. Smaller variance means more consistent measurements and better experimental technique.

Pro Tip: Always show your work step-by-step in error analysis - partial credit saves grades!

Variance and Standard Deviation Problems

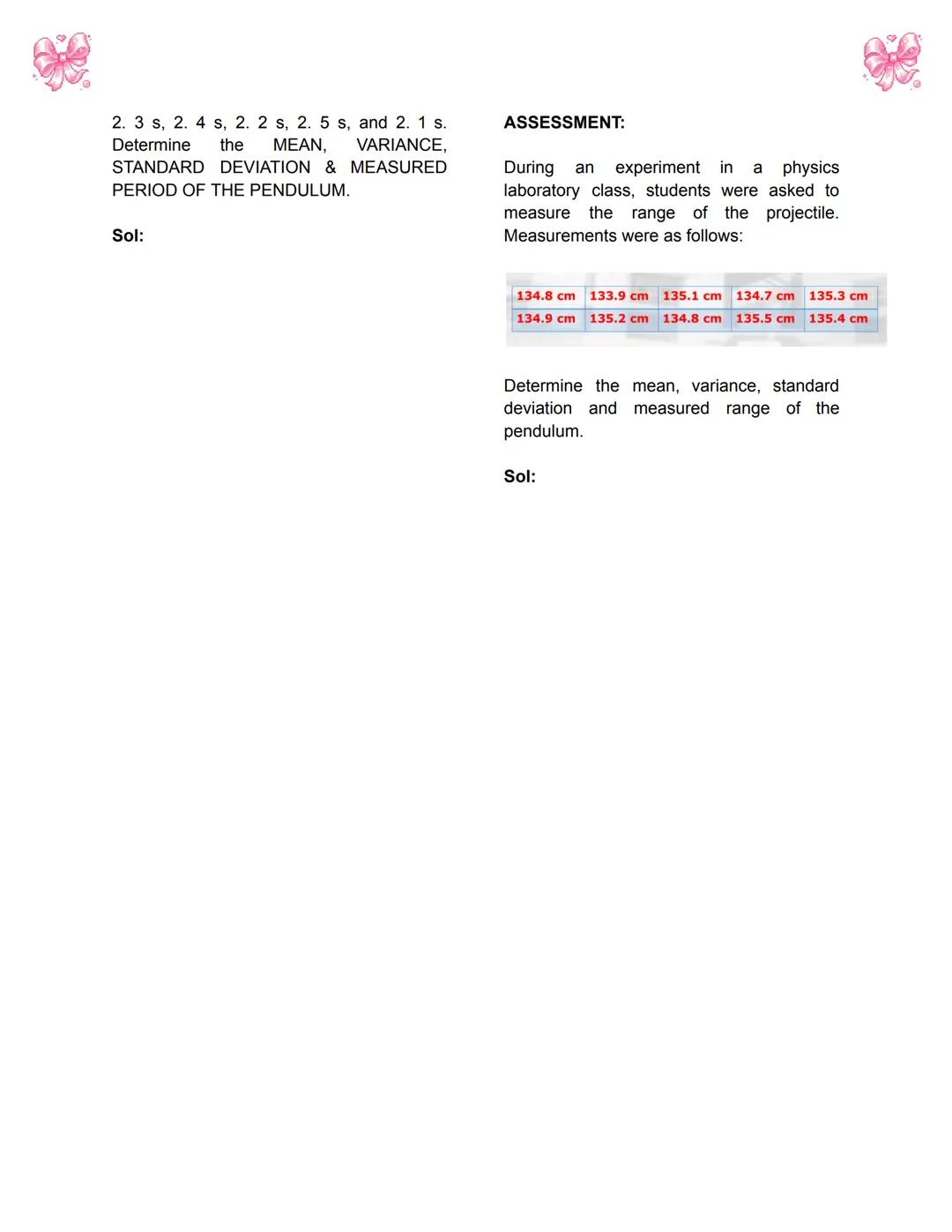

Working with real data makes these concepts clearer. For pendulum measurements of 2.3s, 2.4s, 2.2s, 2.5s, and 2.1s, first find the mean: (2.3 + 2.4 + 2.2 + 2.5 + 2.1)/5 = 2.3s.

Next, calculate each deviation from the mean, square them, sum the squares, and divide by the number of measurements. This gives you the variance, and taking the square root gives you the standard deviation - a measure of uncertainty.

The projectile range problem with ten measurements follows the same process. Calculate: mean = 134.96 cm, then work through the variance calculation systematically.

Standard deviation tells you the typical spread of your measurements. A smaller standard deviation means your experimental technique was more consistent, while a larger one suggests more variability in your measurements.

Study Strategy: Practice these calculations by hand first, then verify with a calculator - you'll understand the process better!

Absolute and Relative Uncertainty

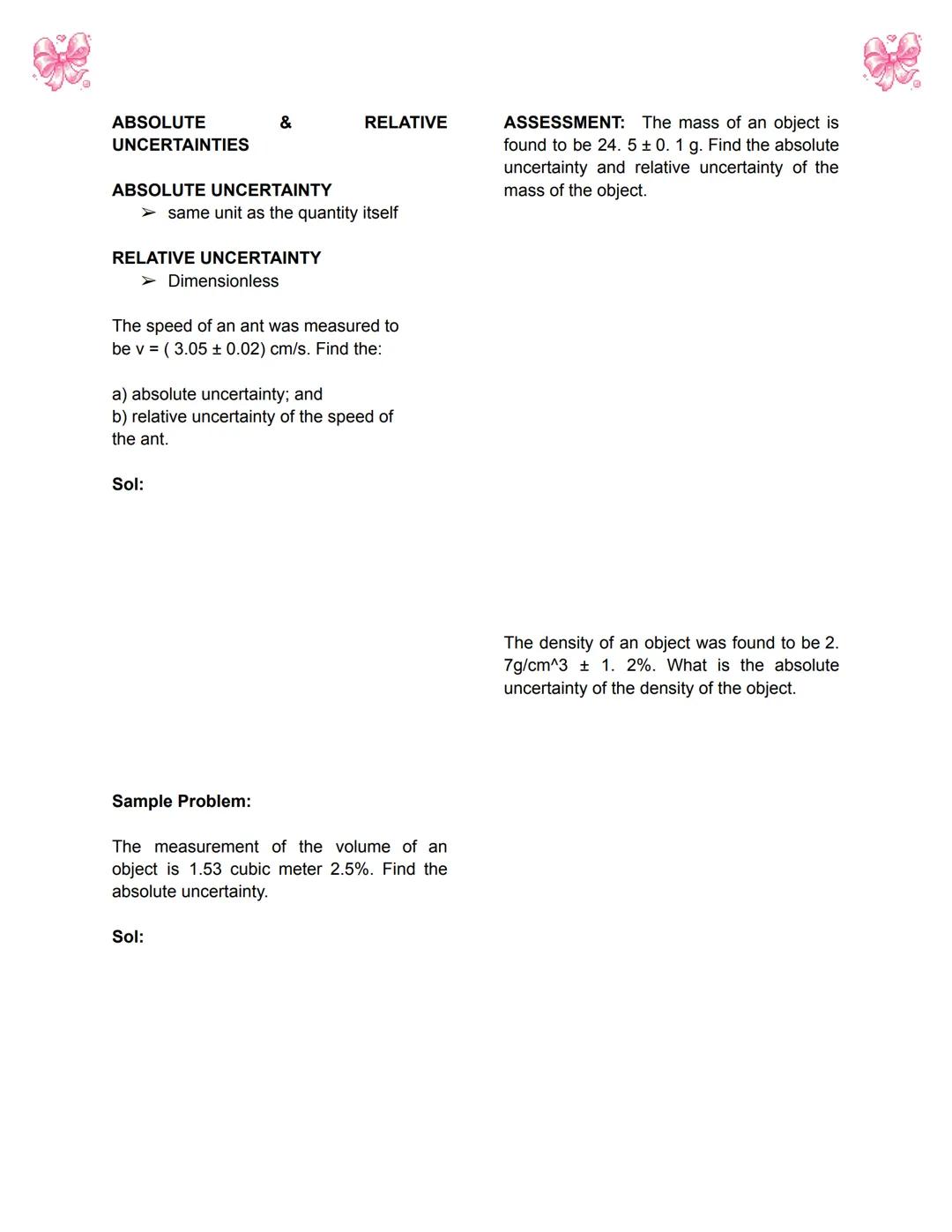

Absolute uncertainty uses the same units as your measurement, while relative uncertainty is dimensionless (no units). For a mass of 24.5 ± 0.1 g, the absolute uncertainty is simply 0.1 g, and the relative uncertainty is (0.1/24.5) × 100% = 0.41%.

An ant's speed measured as (3.05 ± 0.02) cm/s has an absolute uncertainty of 0.02 cm/s and relative uncertainty of (0.02/3.05) × 100% = 0.66%. These calculations help you understand how precise your measurements really are.

When given a percentage uncertainty, you can work backwards to find absolute uncertainty. If volume is 1.53 m³ ± 2.5%, the absolute uncertainty = 1.53 × (2.5/100) = 0.038 m³.

Understanding uncertainty helps you evaluate the quality of your experimental results and compare different measurement methods. Lower uncertainty generally indicates better measurement techniques.

Real-world Connection: Scientists use uncertainty analysis to determine if new discoveries are statistically significant!

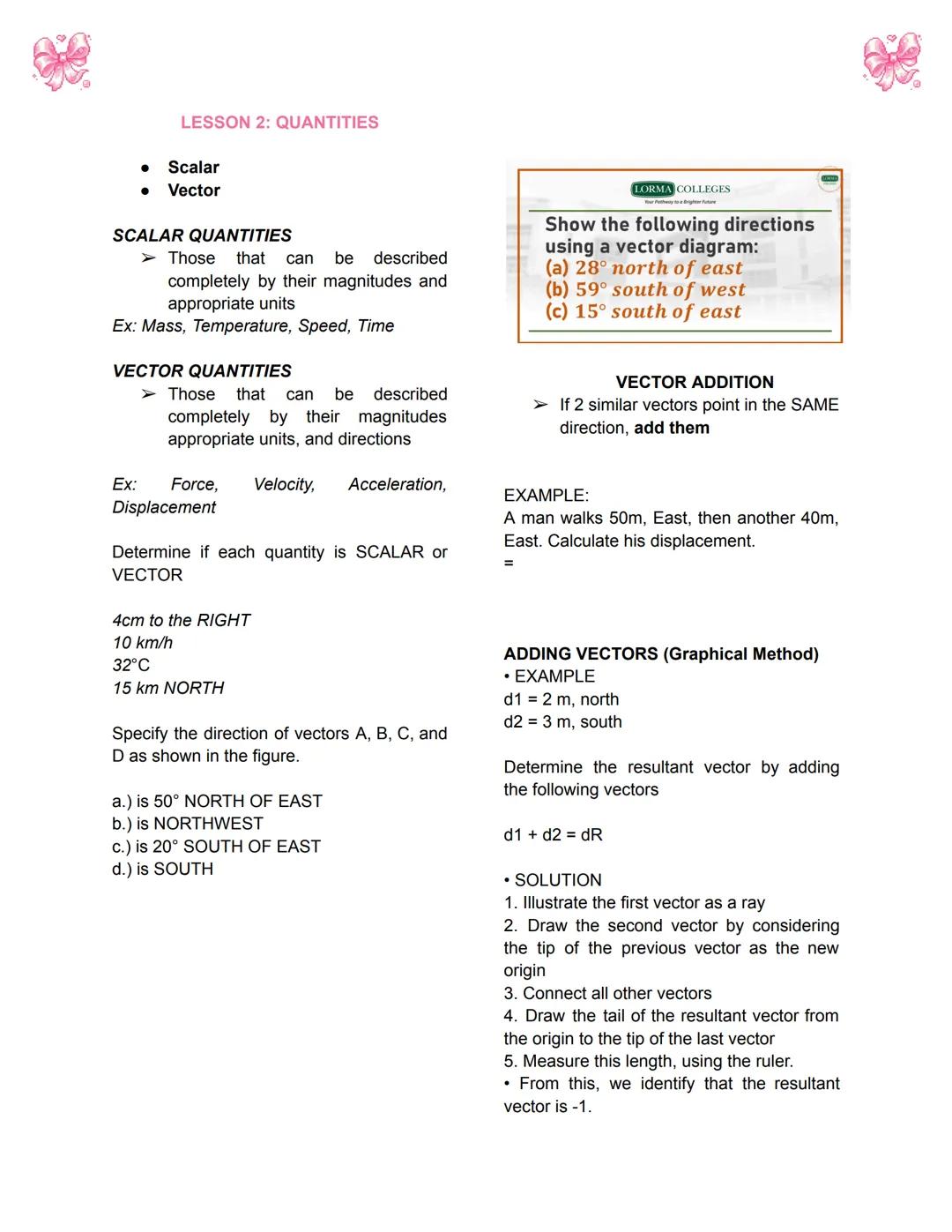

Scalar and Vector Quantities

Scalar quantities only need magnitude and units - like saying "I have 15 pesos" or "the temperature is 32°C." Vector quantities need magnitude, units, AND direction - like "I walked 4 cm to the right" or "the wind blows 15 km/h northwest."

Reading vector directions: Vector A at "50° north of east" means start facing east, then turn 50° toward north. "Northwest" means exactly between north and west (45° from each). Practice visualizing these directions - it's crucial for problem-solving.

Vector addition with same directions: simply add the magnitudes. A man walking 50m east, then 40m east travels 90m east total. With opposite directions: subtract the smaller from the larger. Walking 50m east then 40m west gives 10m east displacement.

For vectors at angles, use the head-to-tail method: draw the first vector, start the second vector from the tip of the first, then draw the resultant from the original starting point to the final tip.

Visualization Tip: Always draw vector problems - your brain processes visual information much faster than abstract numbers!

Vector Operations and Trigonometry

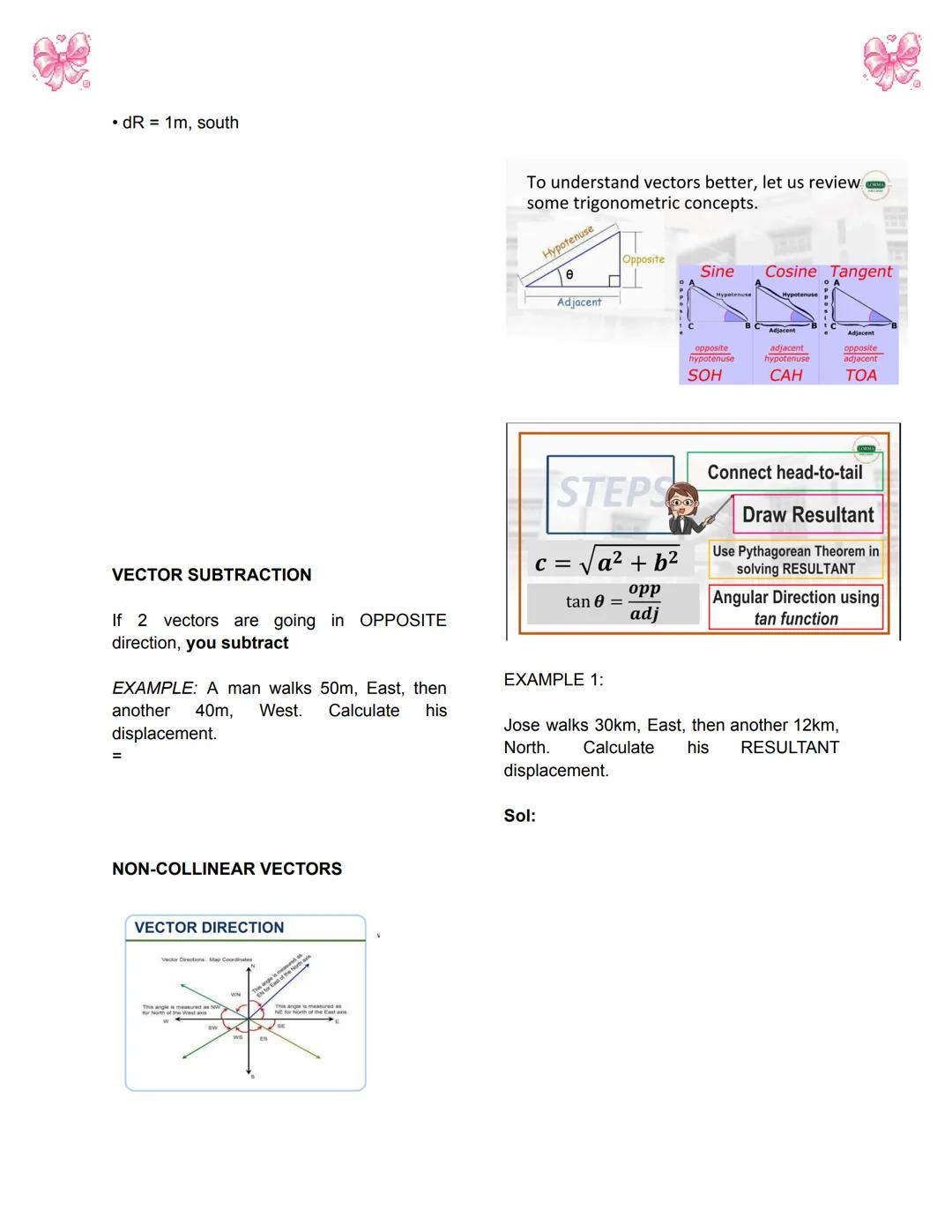

Remember SOH-CAH-TOA: Sine = Opposite/Hypotenuse, Cosine = Adjacent/Hypotenuse, Tangent = Opposite/Adjacent. These ratios are essential for solving vector problems involving angles.

For non-collinear vectors (not in the same line), use the Pythagorean theorem: c = √$a² + b²$ for magnitude, and tan θ = opposite/adjacent for direction. When Jose walks 30km east then 12km north, his displacement = √(30² + 12²) = √(900 + 144) = √1044 = 32.3km.

Vector subtraction works like addition but in opposite directions. The key is understanding that subtracting a vector is the same as adding its opposite.

Complex problems often involve multiple direction changes. Break each leg of the journey into components, add similar components, then find the resultant. Total distance adds all segments, but displacement connects start to finish directly.

Test Strategy: Draw every vector problem, even simple ones - it prevents silly mistakes and helps you see the solution path!

Advanced Vector Analysis

The analytical method uses x and y components instead of drawing scaled diagrams. This approach is more accurate and works better for complex problems with multiple vectors.

For a vector at 20° north of east with magnitude 15m: x-component = 15 cos(20°) = 14.1m east, y-component = 15 sin(20°) = 5.13m north. The signs matter: east/north are positive, west/south are negative.

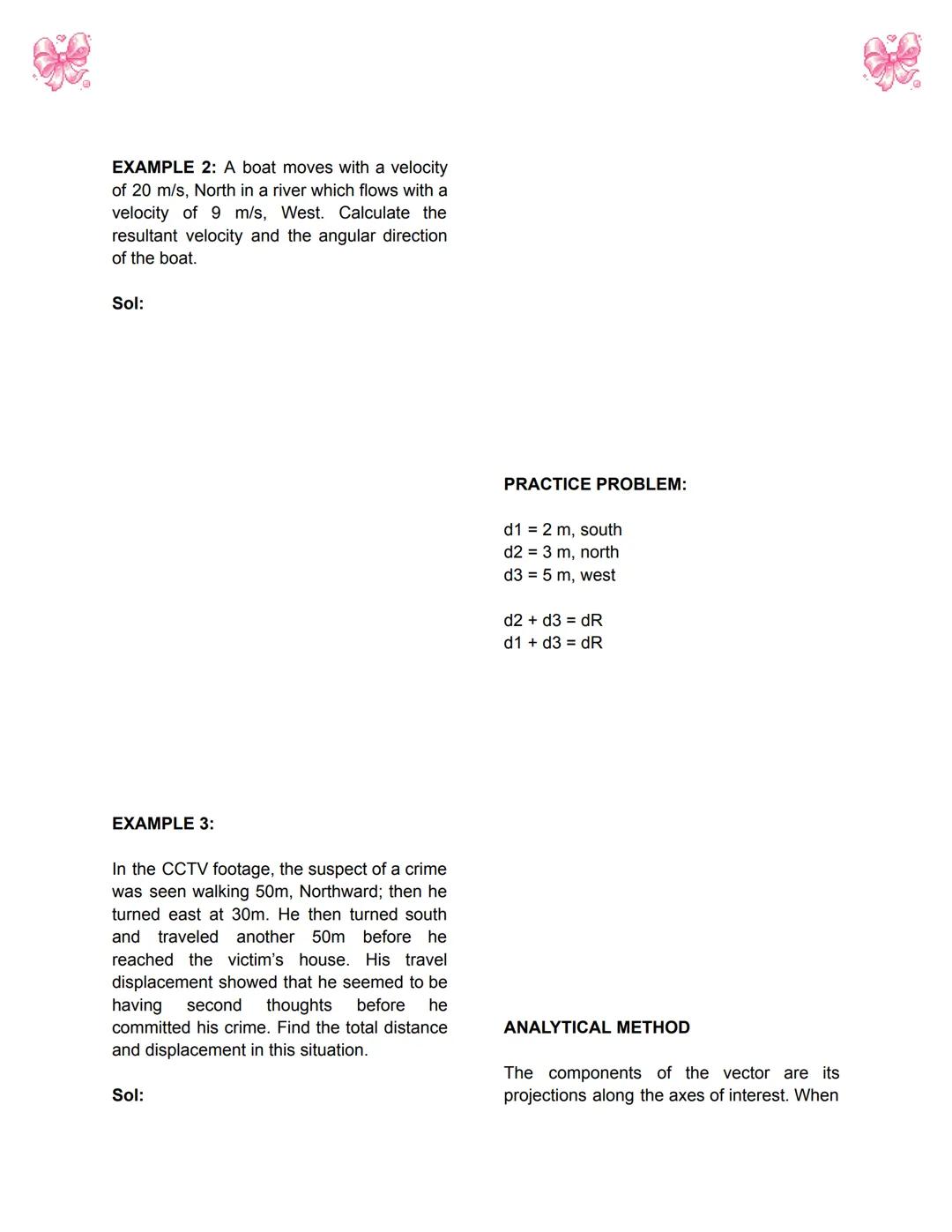

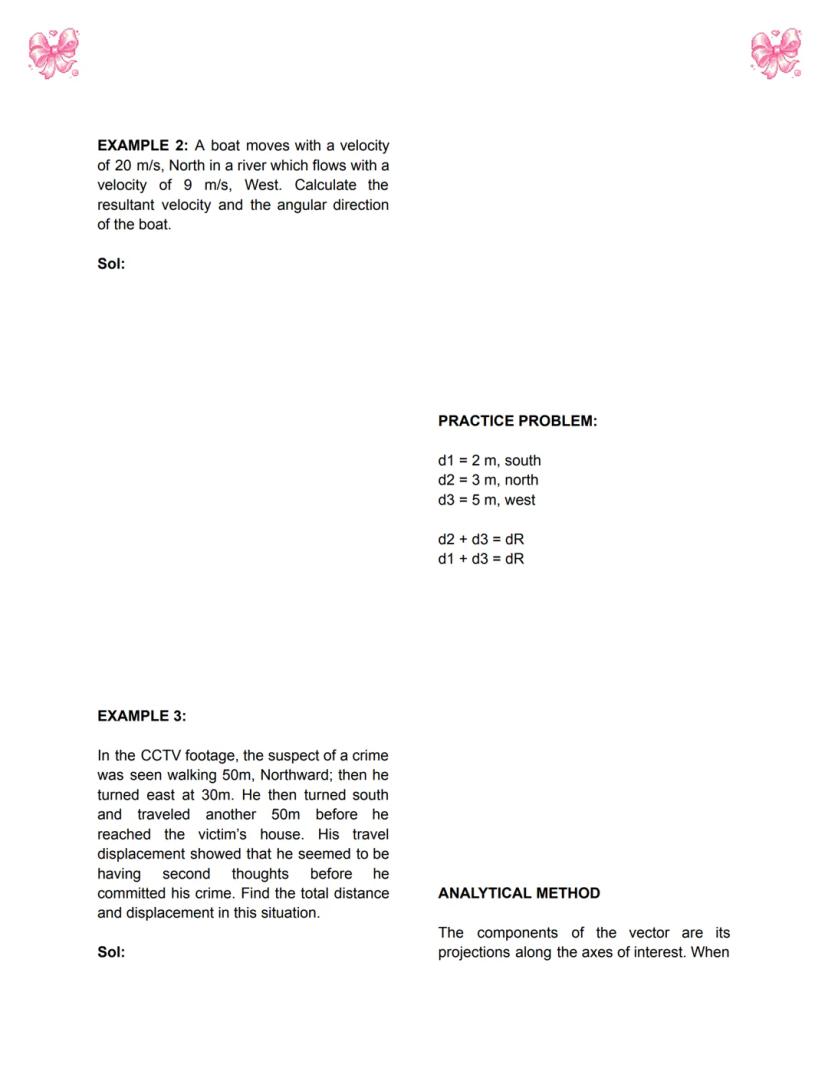

When solving the crime scene problem, break it into segments: 50m north, 30m east, 50m south. Total distance = 130m, but displacement requires vector addition of all segments.

Multiple vector problems become manageable when you find each vector's components first, add all x-components together, add all y-components together, then use Pythagorean theorem on the totals.

Advanced Tip: Learn to recognize when analytical methods are faster than graphical methods - usually when dealing with more than two vectors!

Vector Components and Problem Solving

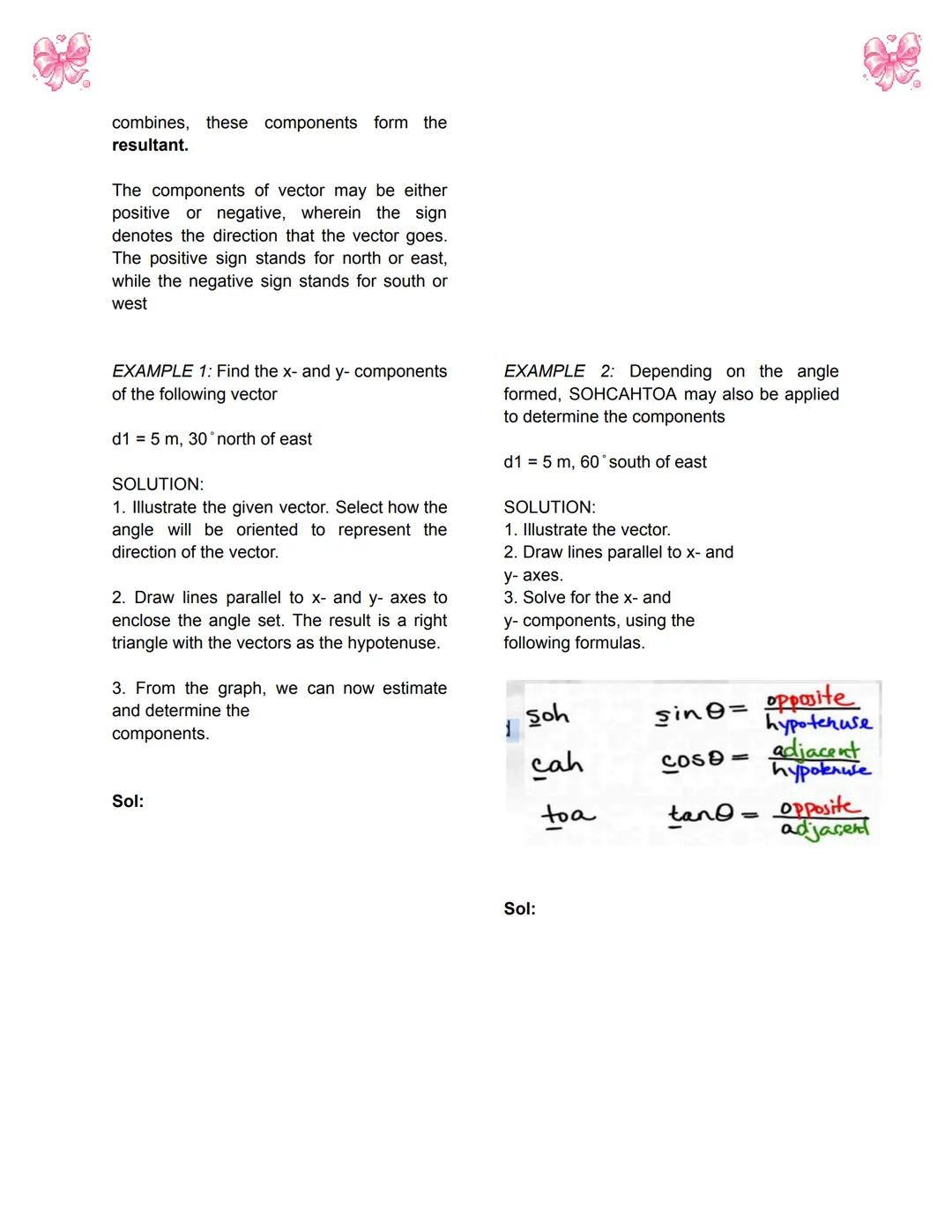

Finding vector components systematically prevents errors. For vector d₁ = 5m at 30° north of east: draw the vector, drop perpendicular lines to both axes, then use trigonometry to find dx = 5 cos(30°) = 4.33m and dy = 5 sin(30°) = 2.5m.

Direction matters for signs! For d₁ = 5m at 60° south of east: dx = 5 cos(60°) = 2.5m (positive, going east), dy = -5 sin(60°) = -4.33m (negative, going south).

The key insight is that any vector can be completely described by its x and y components. Once you master component analysis, complex vector problems become straightforward algebra.

Practice with different quadrants to understand sign conventions. First quadrant (northeast): both components positive. Second quadrant (northwest): x negative, y positive. Third quadrant (southwest): both negative. Fourth quadrant (southeast): x positive, y negative.

Mastery Check: If you can quickly find components and determine correct signs, you're ready for any vector problem on your exams!

Complex Vector Problem Solving

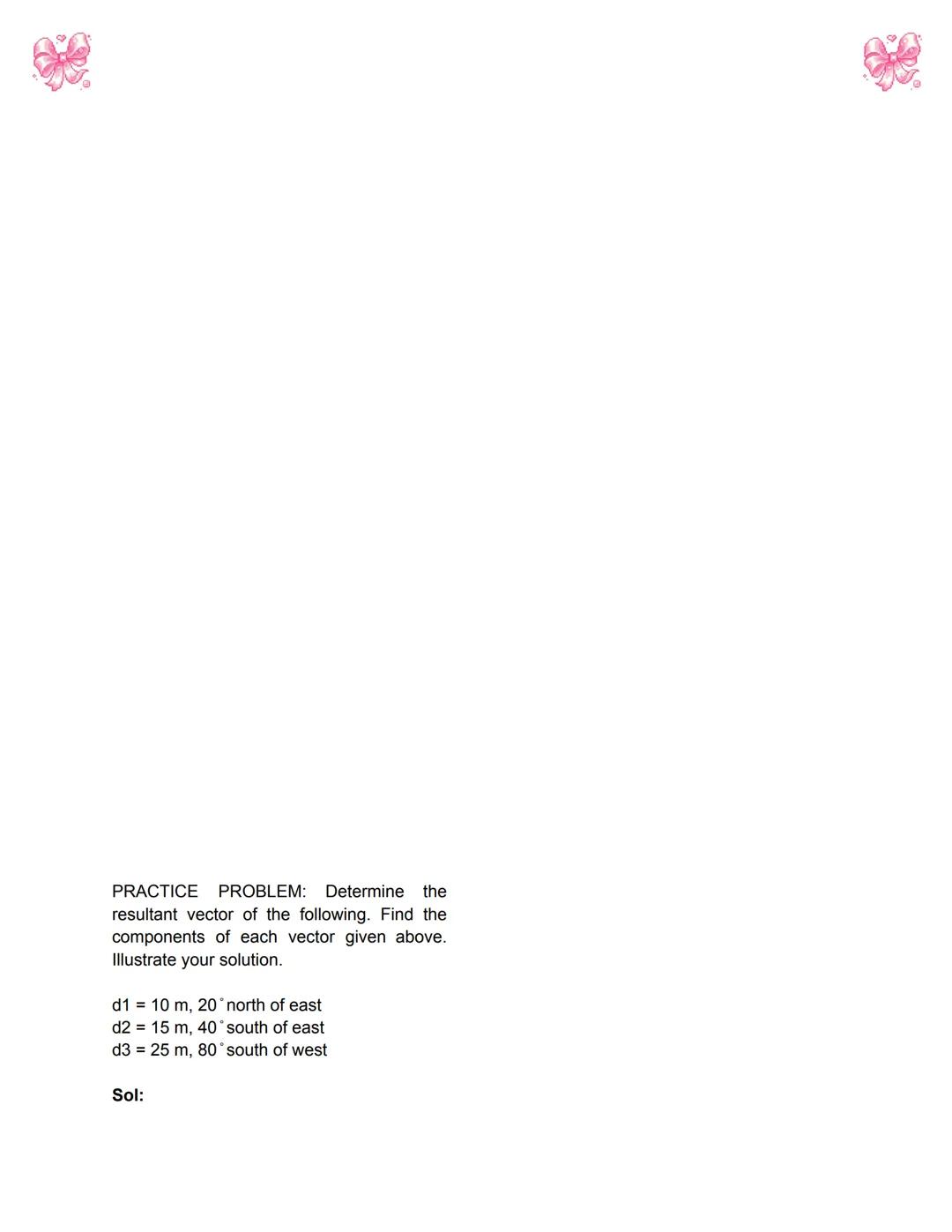

Multi-vector problems like finding the resultant of d₁ = 10m at 20° north of east, d₂ = 15m at 40° south of east, and d₃ = 25m at 80° south of west require systematic component analysis.

First, find each vector's components using trigonometry. Then add all x-components: ΣFx = d₁x + d₂x + d₃x, and all y-components: ΣFy = d₁y + d₂y + d₃y. Pay careful attention to positive and negative signs based on direction.

The resultant magnitude = √$(ΣFx)² + (ΣFy)²$, and the direction = tan⁻¹$ΣFy/ΣFx$. Remember to check which quadrant your answer should be in based on the signs of your components.

This analytical method works for any number of vectors and gives exact answers rather than approximate graphical solutions. It's the preferred method for engineering and physics calculations.

Final Advice: Master these fundamentals now - every physics topic builds on measurement precision and vector analysis!
